AFP concept

Your location is:Nachuan Fittings  > AFP concept

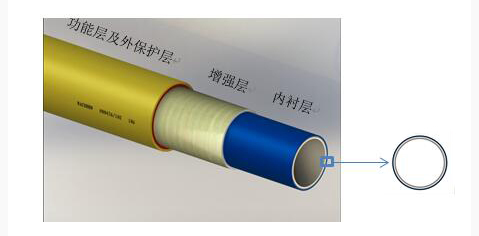

AFP abbreviated for “All-Purpose Flexible Pipe”, can be applied in the extremely harsh environment such as ultra-deepwater or heavy oil exploitation.AFP shows unexceptional performance functioning as submarine risers, jumpers, downhole tubing and long-distance flowline, etc. The pipe system constructed from reinforced fibers and thermoplastic polymer is fully bonded with solid wall. With fibers embedded in the polymer matrix, this composite pipe can acquire strong interface adhesion between different layers. The pipe consists of an inner liner, thermoplastic composite reinforcement layers, a functional layer and an outer coating. All layers are of the same thermoplastic polymer and are welded together during the production process.



      Inner liner: Single layer or three-layer co-extrusion solid wall; the selected materials for liner could be PP, PE, PA, PVDF, PPS, PEEK, etc.

Reinforcement layer: Thermoplastic polymer reinforced with fully-bonded fibers processed by continuous winding; the polymer raw materials include PP, PE, PA, PVDF, PPS, PEEK, etc, and the fibers are classified as glass fiber, carbon fiber or aramid fiber, etc.

Functional layer: Contained with electrical cable, optical fiber, various sensors or other function units, this layer plays an excellent role of data transmission, real-state monitoring and integrity control.

Outer coating: Polymer extrusion; the suitable polymer materials such as PP, PE, PA, PVDF, PPS and PEEK are adopted to produce outer coating.



       Through variations of materials selection and sectional structures design, AFP products are capable to cope with specific application under different circumstances.



The advantages of AFP

      No corrosion

      Flexible and spoolable

      Light-weight, reduction of  top-tension requirement and transportation cost

      High pressure rating

      Excellent fatigue resistance

      Longer service life

      Smooth bore – less wax deposition, less pressure loss, less internal flow-induced vibration

      Lower U-value compared to steel pipe

      Lower requirement for installation vessel

      Lower cost for installation and operation



The product overview

Internal Diameter

2~16 inch

Maximum Water Depth

3000 m

Service Life

30 years

Operating Temperature

-40 to 180

Loading Capacity

Maximum internal pressure rating 60MPa, maximum external pressure rating 30MPa

Corrosion Resistance

The inner liner of thermoplastic polymer can decrease corrosion rate of MIC, SRB, H2S, CO2 and other chemical reagent.

Fatigue Resistance

Due to the great flexibility, the bend radius is smaller, the fatigue resistance is great

Fluid Compatibility

Water, oil and gas, single phase or multiphase fluids

Thermal Conductivity

Low U-value compared to steel pipe

Light Weight

40% lighter than the traditional metal structure flexible pipe, no additional floating buoy is required

Easy to Installation

Convenient, cost-effective installation
